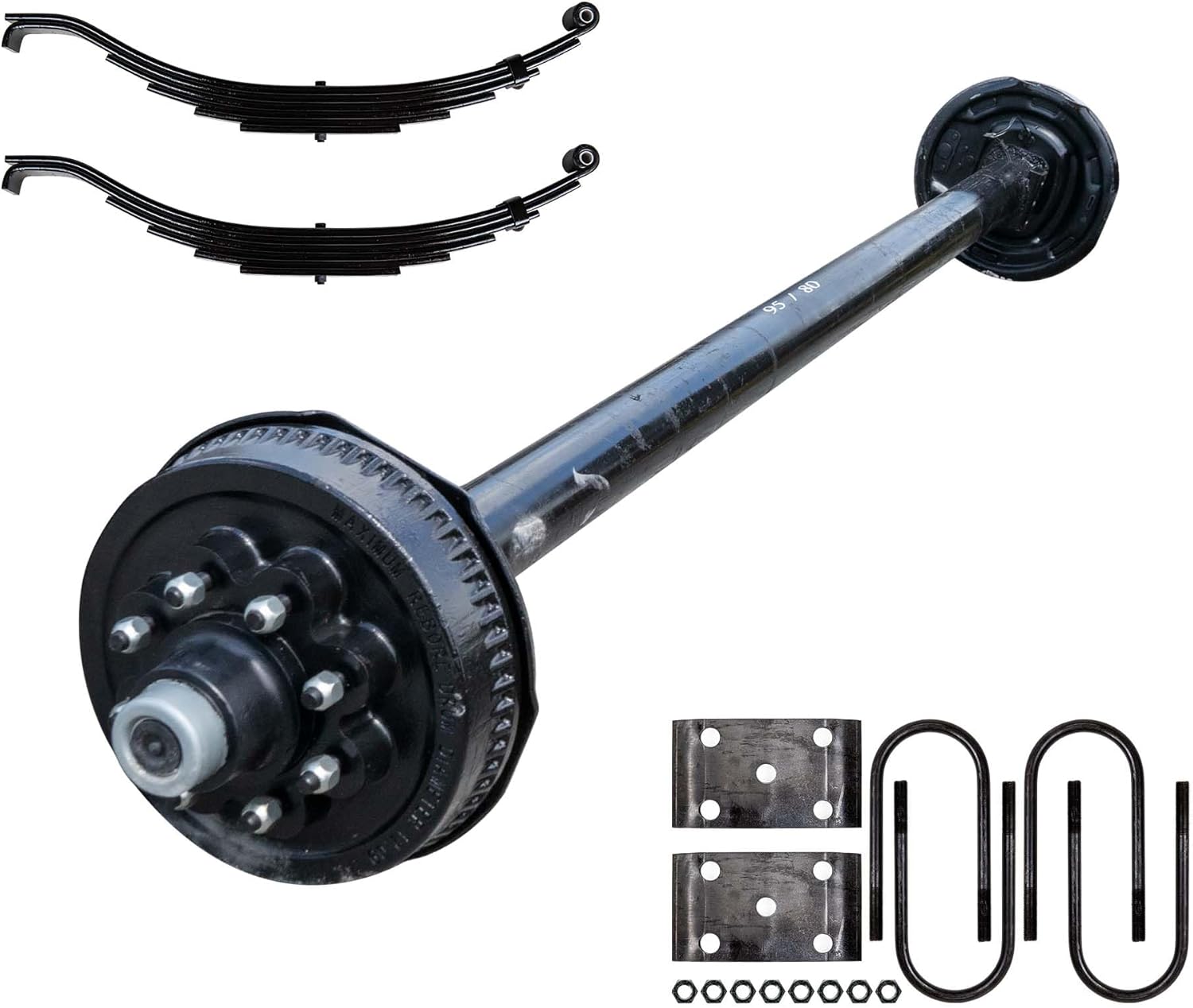

8k TK Hybrid Trailer Axle Kit - 8000 lb Electric Brake 8 Lug 9/16" Studs (12" x 2" Brake - 3.5" Tube), 75" Hubface 58" Spring Center / 8x6.5 Bolt Pattern

Why 8k Heavy Duty (3.5" Tube) Trailer AxleUpgraded 02475 outer bearing to increase axle efficiencyMaintains 12"x2" brakes for low cost maintenance and easy upgrade/installation from 7000 lb axle3.5" Extra heavy axle beam for optimal weight handlingUpgraded 9/16" Studs - Allows for 17.5" Tires & WheelsSpecs:8,000 lbs TK Electric Brake Trailer Axle (8K Capacity)Bolt Pattern: 8x6.5Tube: 3.5"Weight: 275 lbsThis axle is not ABS compatible9/16" StudsIncludes 2 springs and 1 ubolt kitInternal Components: 8K (8000 lb Capacity) Bearing Kit (2 sets) - each set includes:Inner BearingOuter BearingInner RaceOuter RaceDouble Lip Grease SealHub Cap (Dive In, with Rubber Plug, 2.72")8k Trailer Axle Drum - 8 lug Brake8k Trailer Axle Studs - 9/16"8k Trailer Axle Brake - 12"x2" ElectricFeatures:Axles come fully assembledUnderslung - Axle is welded with spring seats on the bottomAllows for lower ride heightFor optimal usage, use with double eye springsEZ Lube DesignRemovable rubber plug on the hub cap with easy access to a grease-able zerk fittingGrease your axle without pulling off your whole entire hubHigh Strength Straight Steel Axle Tube Construction to ensureEven Tire WearA better highway experienceDesigned for use on Medium Duty Trailers

• 75" Hubface 58" Spring Center | Specs: 8,000 lbs TK Electric Brake Trailer Axle (8K Capacity), Includes (2) Springs + (1) U-bolt Kit, Bolt Pattern: 8x6.5, Tube: 3.5", Weight: 275 lbs, This axle is not ABS compatible, 9/16" Studs
• Internal Components: 8K (8000 lb Capacity) Bearing Kit (2 sets), 8k Trailer Axle Drum - 8 lug Brake, 8k Trailer Axle Studs - 9/16", 8k Trailer Axle Brake - 12"x2" Electric

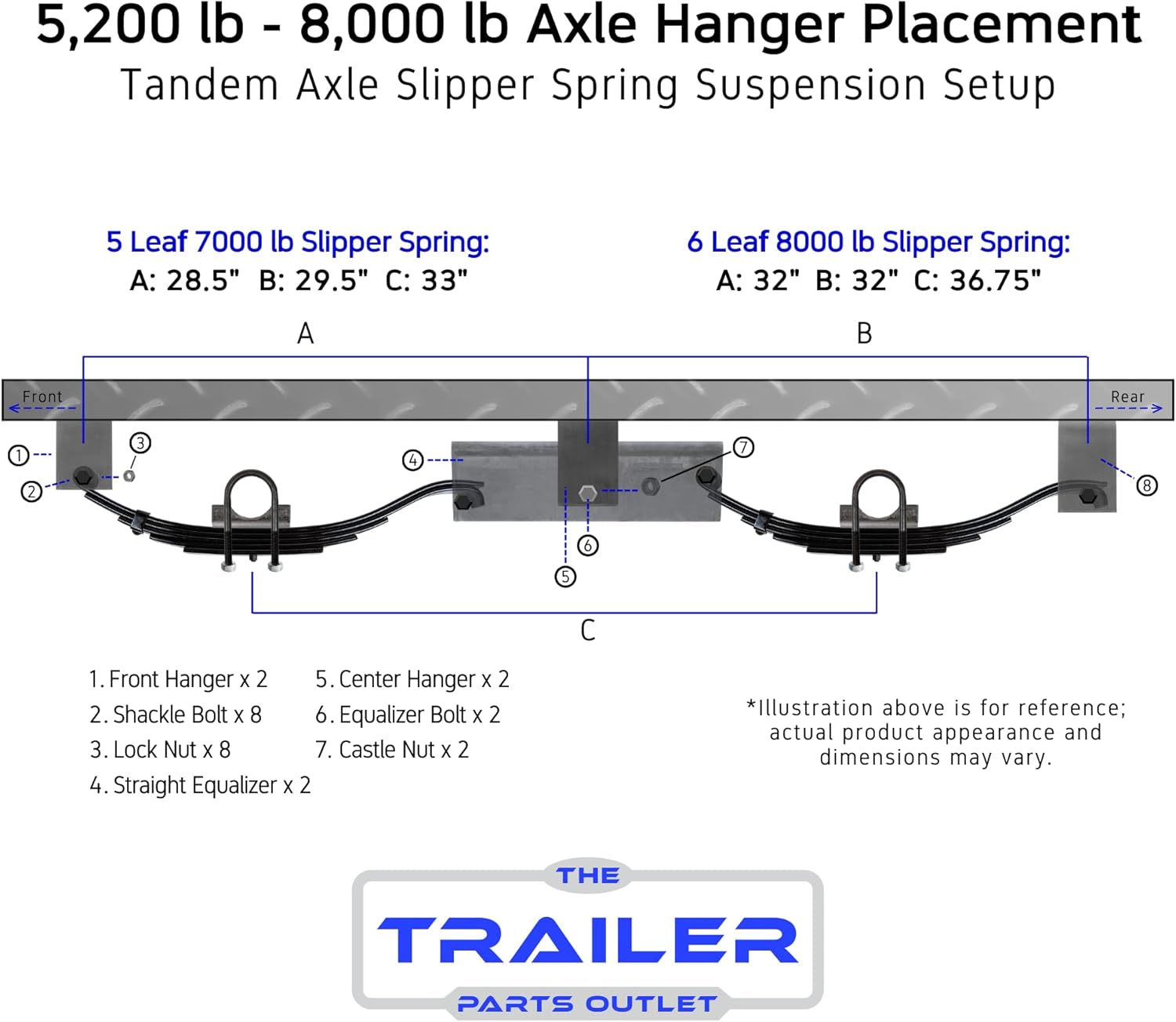

• How to Measure Your Electric Brake Trailer Axle - Hubface: Measure from one face of hub (where the studs start coming out of hub) to the face of hub on opposite side. Spring Center: Measure from center of one spring seat, to the center of spring seat on opposite side (see image in gallery for more details).
• High Strength Straight Steel Axle Tube Construction - Ensures even tire wear and a better highway experience. | Underslung - Axle is welded with spring seats on the bottom. Allows for lower ride height. For optimal usage, use with double eye springs. | EZ Lube Design - Removable rubber plug on the hub cap with easy access to a grease-able zerk fitting. Grease your axle without pulling off your whole entire hub | Internal Wiring System - Seamless design to protect brake wires from wear and tear.
• Designed for use on Medium Duty Trailers: Utility, Car Hauler, Lawn & Landscape, Flatbed, Livestock, Cargo, Enclosed, RV, Dump, Lowboy and more
