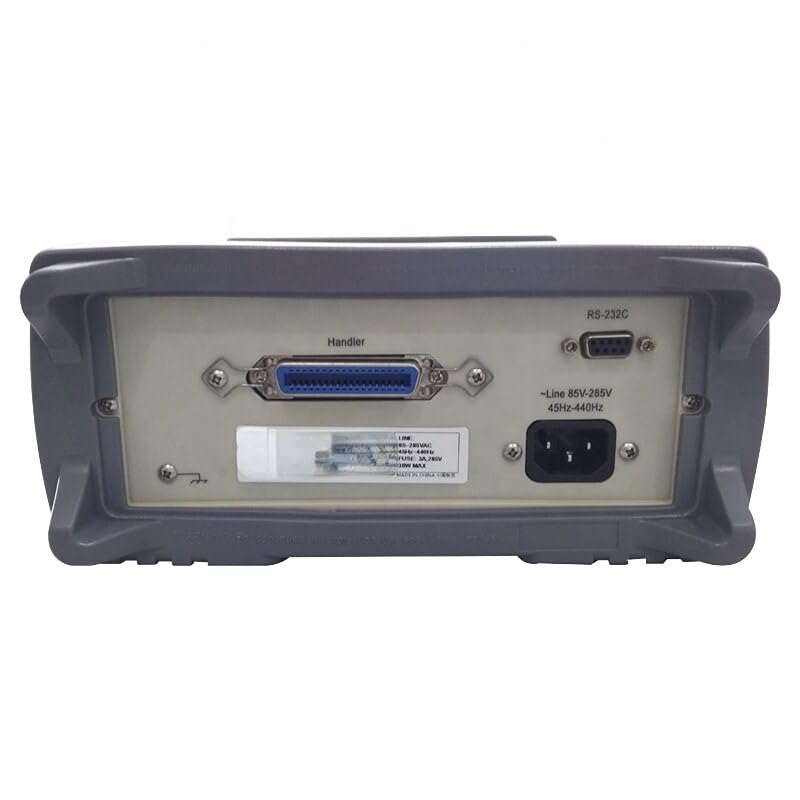

AT2816B Digital LCR Meter with 50Hz-200kHz Range, 0.1% Accuracy, LCRZDQ Testing - Fast Precision Component Analyzer for Lab/Production Sorting and Quality Control
Product details
| Management number | 210911353 | Release Date | 2026/04/04 | List Price | $570.00 | Model Number | 210911353 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Measure inductance, capacitance, resistance, and more with precision across a wide frequency range. The AT2816B handheld LCR meter provides highly accurate 0.1% basic impedance measurements from 50Hz to 200kHz frequency, ideal for characterizing and sorting components quickly in design, production, and lab use. Key Features: - 0.1% basic accuracy - 50Hz to 200kHz frequency range - LCRZDQ parameter measurements - 30 readings/sec test speed - 10 sets of automated sweep testing - 3-point open/short/load calibrations - 14-bin sorting function - 4.5 digit display resolution - 2V max test signal amplitude With its combination of high accuracy, wide frequency coverage, fast test speed, and automated sweep testing/sorting functions, the AT2816B improves efficiency and simplifies precision impedance analysis across applications.
- Covers a broad frequency range from 50Hz to 200kHz to test various components
- Provides high 0.1% basic accuracy for reliable measurements across components and frequencies
- Measures inductance, capacitance, resistance, impedance, phase, and Q factor for comprehensive testing
- Fast measurement speed of 30 readings/second for efficient testing
- Automated frequency and voltage level sweep tests (10 sets) to evaluate components across multiple points
| Manufacturer | GOYOJO |
|---|
