ATU-100 EXT Automatic Antenna Tuner 1.8-55MHz for Ham Radio, WOOKLEA V3.2 ATU 100 Tuner with OLED Display, Low SWR Fast Tuning, Portable Antenna Tuner Kit for POTA SOTA DX

Specification: Allowable power supply voltage range: 10-15VDC Maximum current consumption: 400 mA Maximum working power: 100W Maximum possible measured power: 150W Minimum power required to start tuning: 5W Minimum possible measured power: 0.1W Measurement resolution of power up to 10W: 0.1W Measurement resolution with power greater than 10W: 1W Power measurement accuracy error: ± 10% Maximum installed inductance: 8.53H inductance Minimum installation step: 0.05H Maximum installed capacity: 1869 pF Minimum capacitance installation steps: 10 pF Typical consumption：100-200 mA Note: In order to protect the environment and save energy, the screen will enter the sleep mode after 10 seconds of inactivity and no emission. At present, the optional functions include 1-5w startup, 10-second screen self-extinguishment/constant light, full automatic/manual mode, etc. This product is started tuning by 1w by default, the screen is always on, and the manual/automatic mode is switched. Manual and automatic mode operation method: Manual mode, that is, press and hold the RESET/TUNE key before the relay can be adjusted. Full-automatic mode, that is, without pressing the key, the system automatically starts to adjust when it detects that the standing wave ratio is greater than 1.3:1 (this value can be adjusted). The parameters used by the product are the main parameters tested by the developer during the software development process, ensuring the reliability of the equipment operation and use in the basic version. Many parameters can be changed by themselves, but they need to be changed carefully to prevent the equipment from being unavailable.

• 【Fast Auto Tuning, Low SWR】: Achieve low SWR in seconds with 1.8-55MHz wide frequency coverage - A/M switch on the back for seamless toggle between automatic and manual modes - Boosts transmission efficiency for all bands
• 【Ultra Compact, Easy to Carry】: Measures only 4.3×3.9×1.7 inch for maximum portability - Fits effortlessly in backpacks or gear bags - Lightweight and travel-friendly for POTA, SOTA, DX and field communications

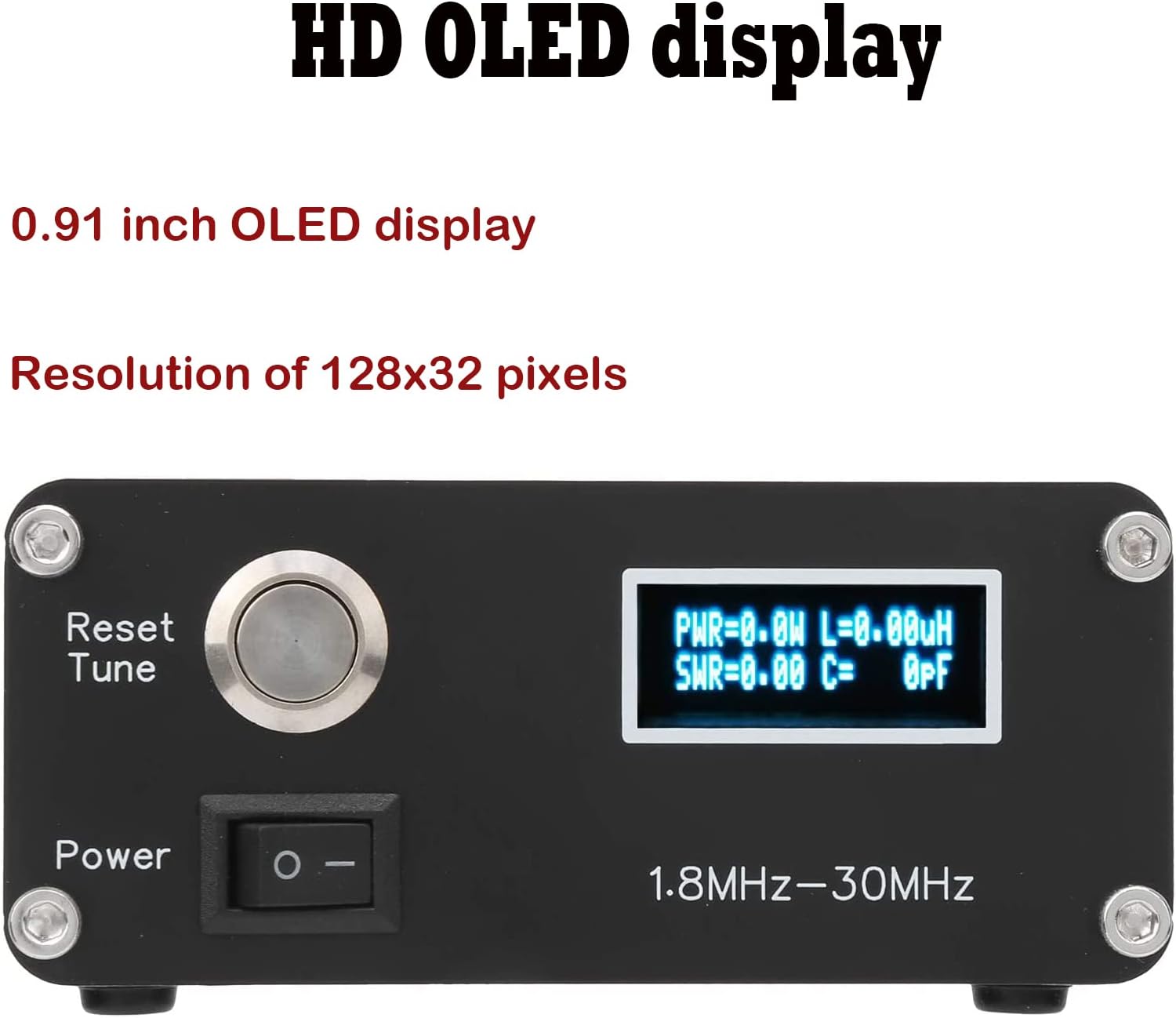

• 【Clear OLED, Easy Operation】: Vibrant color OLED display delivers crystal-clear tuning data at a glance - No squinting in any lighting conditions - Intuitive design for both beginners and seasoned operators
• 【Wide Compatibility, Versatile Use】: Works with dipole, vertical ground, loop antennas and most ham radios - Perfect for amateur radio, outdoor emergency communication, shortwave testing - Essential tool for ham radio enthusiasts
• 【Premium Metal Shell, Durable Build】: Crafted with aluminum alloy enclosure and professionally soldered circuits - Stable performance for indoor stations and outdoor activities - Built to withstand regular field use
