Cnc Router Machine 6060, NEMA 23 Closed-Loop Stepper Motor with Upgraded 710W Trim Router Spindle, Dual Linear Rails & Ball Screws Milling Machine for Wood Acrylic Aluminum Carving Cutting
$1,599.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mail.skinstudiobyv.ca
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$1,599.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mail.skinstudiobyv.ca
Free 30-day returns Details
Product details
| Management number | 219077580 | Release Date | 2026/05/03 | List Price | $640.00 | Model Number | 219077580 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- NEMA23 Closed-Loop Stepper Motors: Equipped with four NEMA23 closed-loop stepper motors, 3A current, and 2.2 N·m torque, enabling the Axiscreat X6060 to operate faster and smoother with lower noise, effectively minimizing step loss and significantly enhancing overall performance

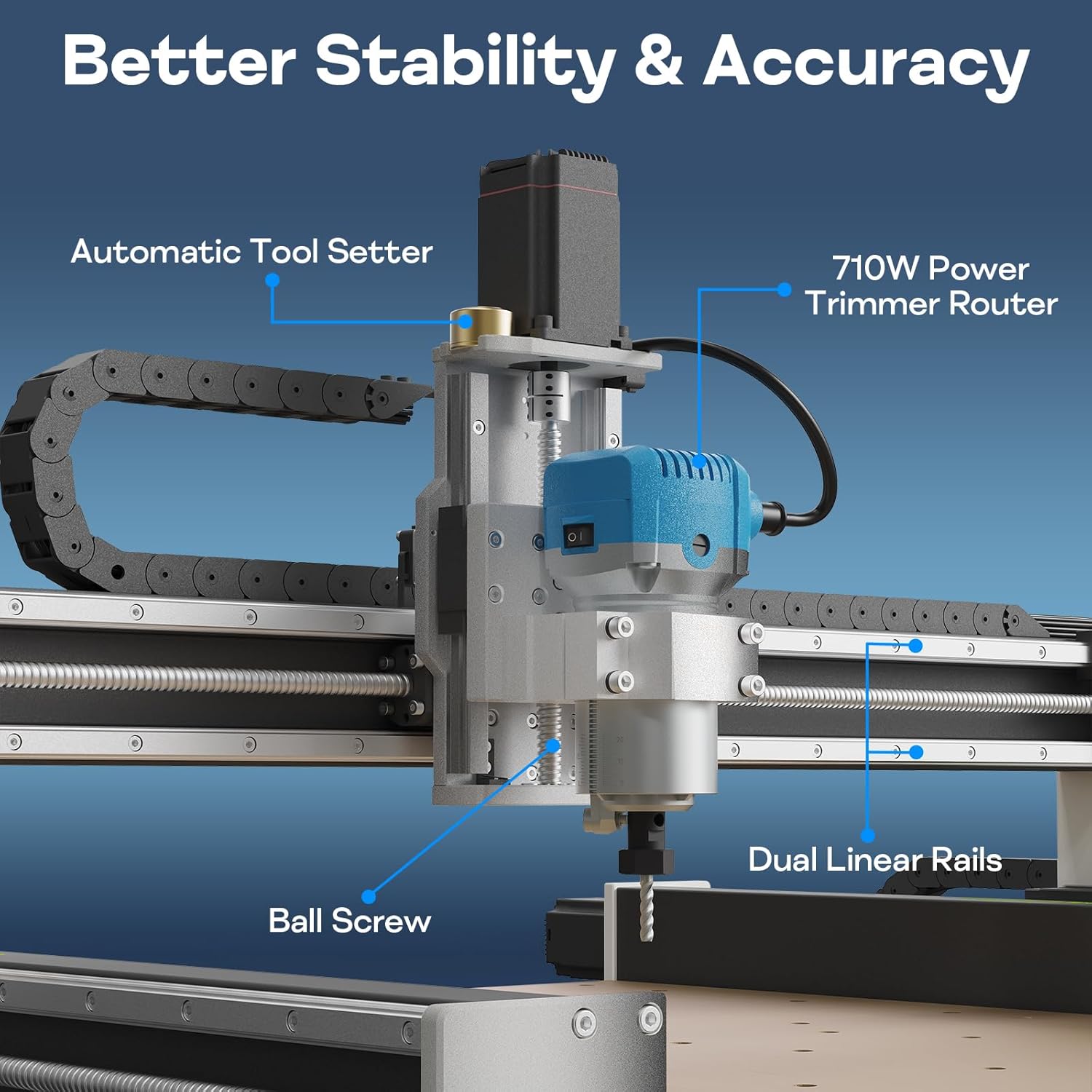

- All Axis Feature Linear Rails and Ball Screws: Our 6060 engraving machine is equipped with dual HG-H15 linear rails and ball screws on all axis, enhancing efficiency and precision while maintaining high speed, stability, and rigidity. Equipped with a 4.3-inch touch screen, making the engraving machine operation more intuitive, convenient, and easy to get started
- Larger Work Area: Featuring a 23.6 × 23.6 × 4.33 inch (600 × 600 × 110 mm) work area, it easily handles large-scale projects, making it an ideal choice for professional applications
- 710W Powerful Trimming Spindle: This CNC router is equipped with an upgraded 710W high-power carving spindle, reaching a maximum speed of 30,000 RPM, enabling efficient cutting and engraving on a variety of materials, including wood, acrylic, and aluminum

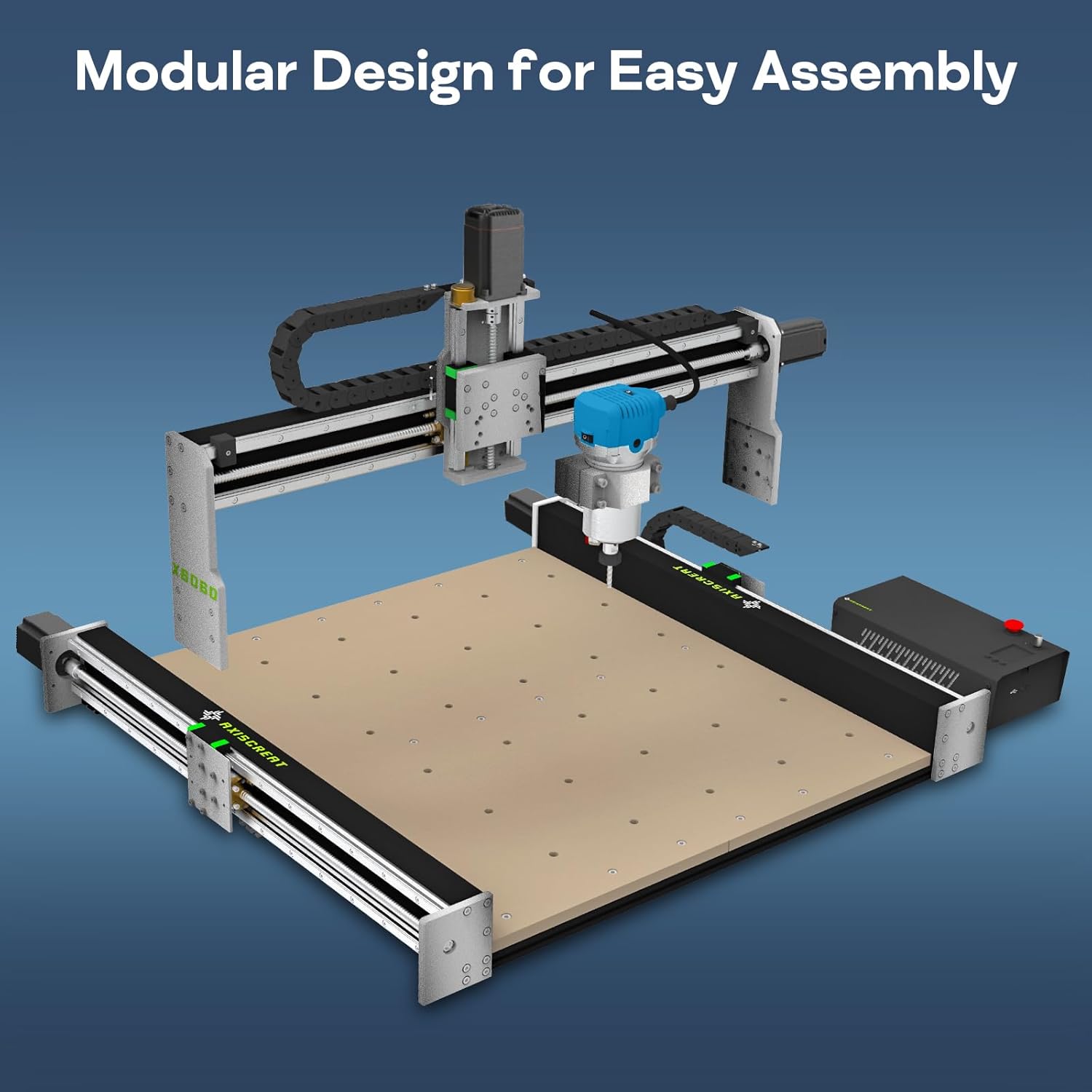

- Modular Design: The pre-assembled modular structure allows for setup in just 20 minutes, requiring only a few simple assembly steps and electrical connections before starting your project. A detailed assembly and wiring video is provided in the link, significantly simplifying the process and reducing setup time
- Expansion Functions: Based on the open-source FluidNC v3.8.4, it features a replaceable dual-core 32-bit driver chip with Wi-Fi support. It offers a wide range of expansion capabilities, including laser output interface, VFD spindle control interface, and support for water-cooled spindles
- Power Supply Notice: Our machine is factory-set to 110V. If using 220V mains, first switch the Power Switch (see control box diagram on main product image) to 220V before powering on—this protects the control box. The included router spindle is 110V only. For safety, we strongly recommend using a step-down transformer to convert your 220V mains power to 110V before connecting either the control box or the spindle
- Routine Maintenance Tips: Check Coupling Screws: Regularly inspect the set screws on the couplings of all three axes for looseness, and tighten them promptly if needed. Lubrication & Cleanliness: Ensure the linear rails and ball screws on all three axes are properly lubricated. If dry, apply a small amount of appropriate lubricant, and wipe the surfaces clean of dust or debris. Clear the Work Area: Check the worktable for any obstructions that might interfere with the Y-axis movement. Foreign objects can trigger alarms and cause axis misalignment, affecting machining accuracy. Performing these checks regularly will help maintain your machine’s stability, precision, and long-term performance
- High-Spec Configuration: X6060 is a comprehensive upgrade based on our X5050 and A6060 models, incorporating the structural improvements of the A6060 while enhancing the motor performance and extending the working travel of the X5050, resulting in an overall configuration that ranks among the top in the market
- Friendly Reminder: Engineered for excellence—this professional-grade model, with its refined design and upgraded performance, is the perfect choice for advancing makers, woodworking studios, and anyone who values precision and premium build quality
| Style | 6060-1 |
|---|---|
| Voltage | 24 Volts |
| Wattage | 710 watts |
| Material | Aluminum+Wood |
| Item Weight | 107.8 pounds |
| Part Number | AT-CNC-X6060-2 |
| Manufacturer | Axiscreat |
| Power Source | ac_dc |
| Item model number | AT-CNC-X6060-2 |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 41.5 x 38 x 10.5 inches |
| Item Package Quantity | 1 |
