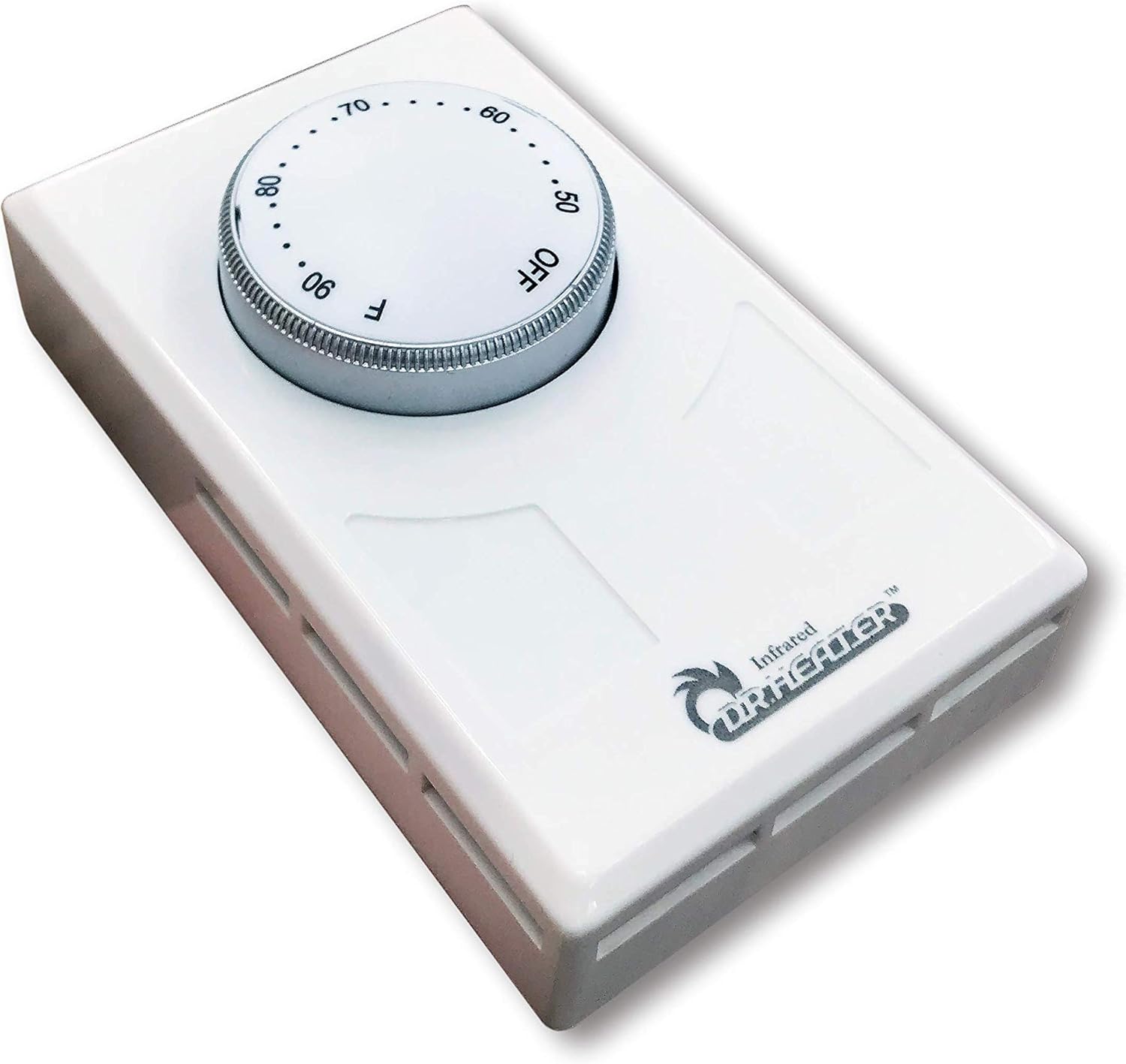

Dr. Infrared Heater DR-001 Wall Thermostat 4 wires single or Double poles 120-277V 3360-7756W, White.
Product details
| Management number | 220803300 | Release Date | 2026/05/03 | List Price | $9.54 | Model Number | 220803300 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DR-001 wall thermostat works with single or double poles circuit with voltage inputs from 120-277VAC with 28A maximum power. It can be wired to 3360W@120V, 5824W@208V, 6720W@240V and 7756W@277V heating system with control range of temperature 41F-90F (5-32C). Wall mount design sits flush against wall with large knob allows easy adjustment to all temperatures. Double terminals with OFF position. ETL listing.
- 3360W@120V / 5824W@208V / 6720W@240V / 7756@277 VAC (28A)
- Includes both C and F control dials (5-32C or 41F-90F)
- Wall mount design-Sits Flush against wall
- Double terminals-provides positive OFF position
- Large knob allows easy adjustment to all temperature
| UPC | 850005348085 |
|---|---|
| Color | White |
| Shape | Rectangular |
| Voltage | 120 Volts |
| Wattage | 3360 watts |
| Backlight | No |
| Brand Name | DR. INFRARED HEATER |
| Model Name | DR-001 |
| Unit Count | 1.0 Count |
| Item Weight | 7.2 ounces |
| Control Type | Knob |
| Display Type | analog |
| Finish Types | Glossy |
| Manufacturer | Dr Infrared Heater |
| Model Number | DR-001 |
| Power Source | Corded Electric |
| Mounting Type | Wall Mount |
| Product Style | DR-975 External Thermostat |
| Control Method | Touch |
| Item Type Name | Wall Thermostat |
| Controller Type | Push Button |
| Specification Met | ETL |
| Additional Features | Lightweight Design |
| Included Components | DR-001 Wall Thermostat |
| Connectivity Protocol | IR |
| Manufacturer Part Number | DR-001 |
| Temperature Control Type | Manual |
| Item Dimensions D x W x H | 4.5"D x 2.7"W x 2"H |
| Specific Uses For Product | Electric Baseboard Heater |
| Manufacturer Warranty Description | 1 year limited manufacturer warranty. |
| Global Trade Identification Number | 00850005348085 |
