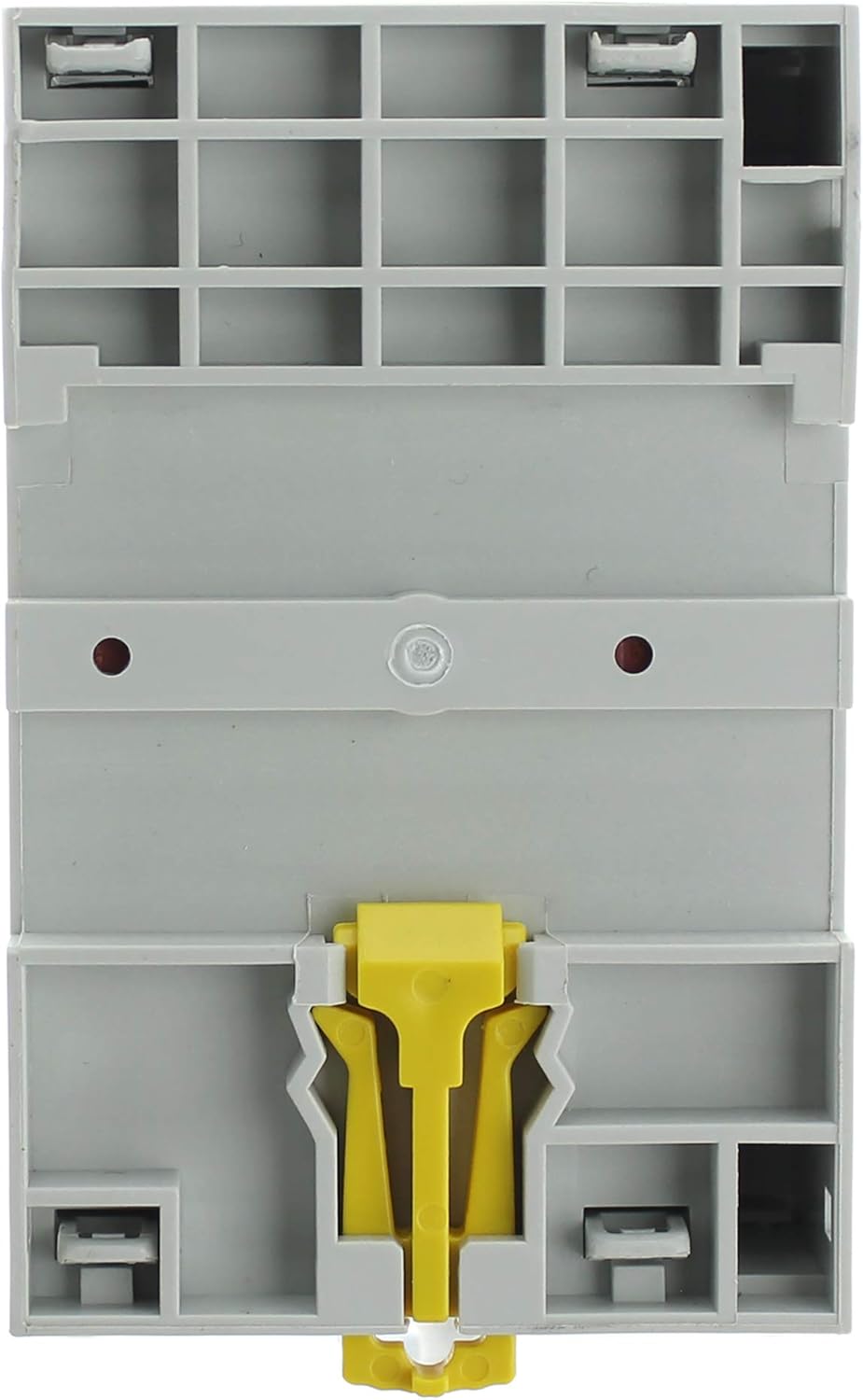

Electrodepot 63 Amp 4 Pole Normally Closed IEC 400V Contactor (Silent Operation) – 24V Coil, Motor Load 40A and Lighting Load 63A with Mounting Base for DIN Rail

63 Amp 4 Pole Normally Closed IEC 400V Contactor for home or industrial uses. Perfectly compatible with DIN rail mounting. It features a convenient power status indicator, and an energy saving, silent and no humming coil. With applications in lighting, motor and switching. Technical Specifications: – Contactor IEC 400V – Contactor Type NC – Full Load Amps-Inductive 40 – Full Load Amps-Resistive 63 – DC Load: 30A, @ 24VDC – Power status indicator – Number of Poles 4 – Coil Volts: 241V – Coil Load: Inrush 52VA, Sealed 10VA – IEC AC Rate: AC-1, 16 kW. AC-3, 11 kW – Electric e strength: 4 kV – Operating Temperature: -30…+70 °C (-22…+158 °F) – 1 HP @ 1 Phase - 120V – 2 HP @ 1 Phase - 230V – 5 HP @ 3 Phase - 208V – 5 HP @ 3 Phase - 230V – 10HP @ 3 Phase - 480V – Weight: 0.88 lb (0.42 kg) – CE approved 61095, UL pending – Base or DIN 35mm mount Wiring: Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm Compliance: CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508

• INDUSTRIAL QUALITY COMPONENTS – 63Amp 4 Pole Normally Closed (NC) General Purpose Contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation
• APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
• FULL AMP LOAD – Inductive/Motor Load: 40Amp. Resistive/Incandescent Load: 63Amp. DC Load: 30Amp @ 24VDC. Compatible with 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp Loads. Power Lug Terminal Capacity AWG # 4
• COIL VOLTAGE AND LOAD – Voltage: 24V. Load: 52VA Inrush and 10VA Sealed
• OTHER CONTACTOR DETAILS – IEC AC Rate: AC-1; 16 kW, AC-3; 11 kW. Electric e strength: 4 kV. Operating Temperature -30…+70 °C (-22…+158 °F). Dimensions (approx.): 54 x 85 x 66 mm / 2.1'' x 3.3'' x 2.6'' (Width x Height x Depth)
