Mudder 7 Pcs Air Conditioning Refrigerant Compact Ball Valve 1/4 Inch for R410A R134A R12 R22 HVAC Adapter 5/16Inch Female to 1/4Inch Male(Gold,3 Straight Ball Valve, 2 Angle+2 Right Angle Adapter)
Product details
| Management number | 218107154 | Release Date | 2026/05/03 | List Price | $9.20 | Model Number | 218107154 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
"7 Pieces air conditioning refrigerant ball valve set includes 3 pieces angled compact ball valve and 4 pieces adapter for mini split system Compatible with: R410A, R134A, R12, R22, R502, HVAC refrigeration charging hoses Angled compact ball valve: Specifications: Size: 4.9 x 3.7 x 0.9 inches Weight: 10.7 ounces Material: copper Features: Designed for 1/4 inch refrigerants 3 Pieces color coded shut valves Can be operated with one hand, screws onto charging hose end. Made of solid metal for durable use. Adapter for mini split system: Specification: Size: 3.9 x 2.7 x 0.8 inches Weight: 2.88 ounces Material: copper Function: converts the 5/16 inch charging-vacuum ports (R410a style) to accept 1/4 inch gauge-hose set. Features: 1/4 Inch male x 5/16 inch female adapter. Fits for R410a mini split system air conditioners, HVAC and refrigeration service. The thimble of the connector is protected against fluoride leakage. Made of brass, access valves high tensile strength while resisting corrosion. Easy to operate and install. Package includes: 3 x Angled compact ball valves 4 x Adapter for mini split system"
- You will receive: 3 pieces angled ball valves and 4 pieces useful adapters, totally 7 pieces can meet your needs
- Angled ball valve: straight angle manual close up valve with 1/4 inch male and female fitting; The couplers nuts are deeply knurled for quick finger-tightening, 800 psi (55 bar) maximum working pressure and 4000 psi (276 bar) minimum burst pressure

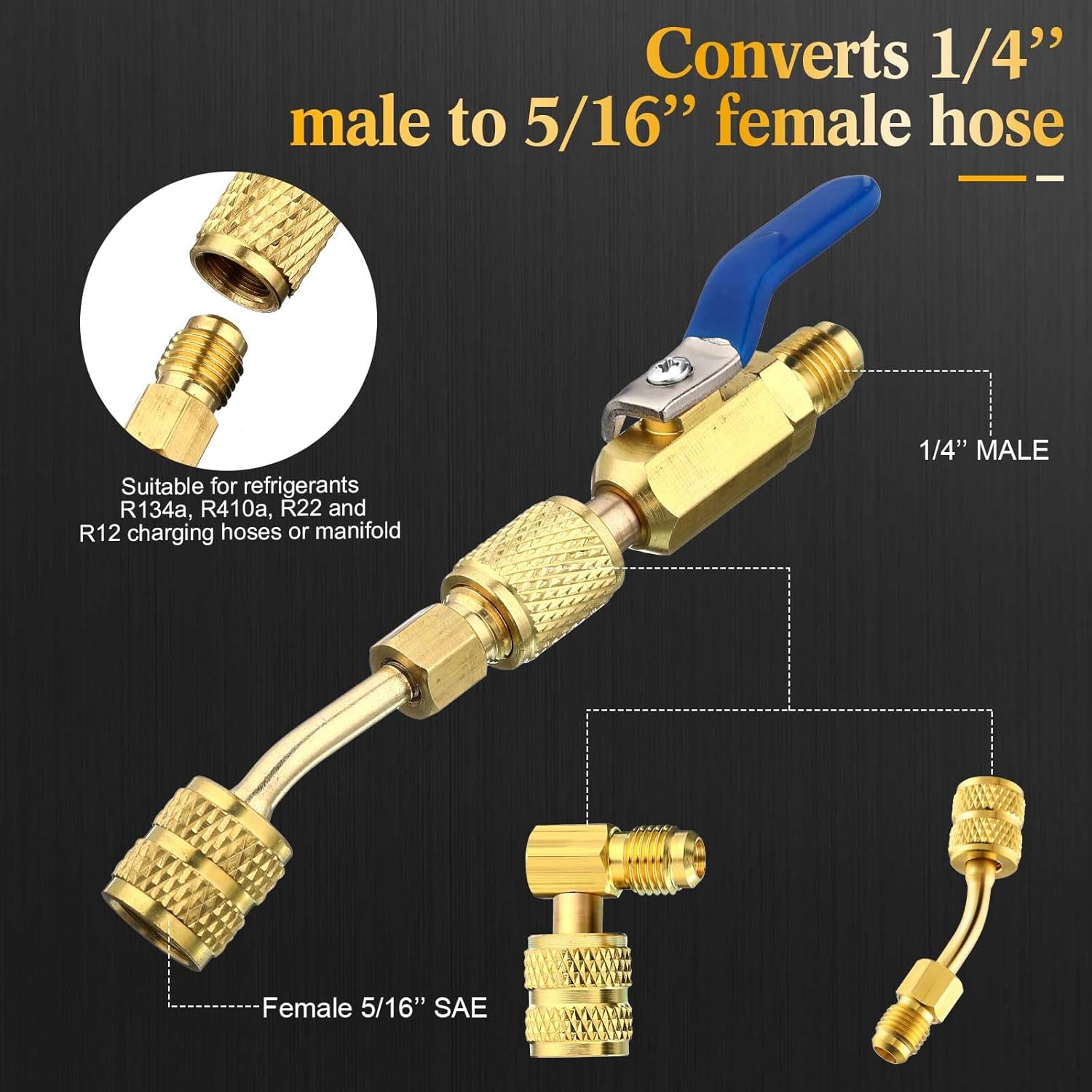

- Adapter for mini split system: converts the 5/16 inch charging vacuum ports (R410a) to accept 1/4 inch gauge hose set, 1/4 inch male x 5/16 inch female adapter; This connector has a thimble, it will not open the air conditioning core tube while operating, good to solve the problem of leakage
- Quality sets: made by quality brass alloy, last long; Easy to operate and install, strong sealing for durability and safety; Built in quality rubber gasket, features with anti-leakage
- Wide application: can be added to hoses for charging and recovery, suitable for refrigerants R134a, R410A, R22 and R12 charging hoses or manifold; Necessary tools for HVAC, car air condition maintenance; Tip: Just tighten it during installation and use, and there is no need to use too much force to cause damage to the sealing device and leakage
| Size | 4.9 x 3.7 x 0.9 inches |
|---|---|
| Set Name | Mudder 7-Piece Refrigerant Ball Valve Set |
| Brand Name | Mudder |
| Unit Count | 7.0 Count |
| Valve Type | Ball Valve |
| Item Weight | 0.8 Pounds |
| Thread Size | 1/4 inch |
| Thread Type | NPT |
| Manufacturer | Mudder |
| Model Number | / |
| Material Type | Brass, Copper, Metal |
| Connector Type | Flare |
| Item Type Name | / |
| Exterior Finish | Brass |
| Number of Ports | 7 |
| Maximum Pressure | 800 Pound per Square Inch |
| Number of Pieces | 7 |
| Specification Met | ASME B16.34 |
| Included Components | / |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | Flare |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | Flare |
| Manufacturer Part Number | Mudder-fittings -98 |
| Manufacturer Warranty Description | / |
| Global Trade Identification Number | 08500612270973 |
