uxcell Safety Capacitors Polypropylene Film 2.2uF 275VAC X2 MKP 20 Pcs

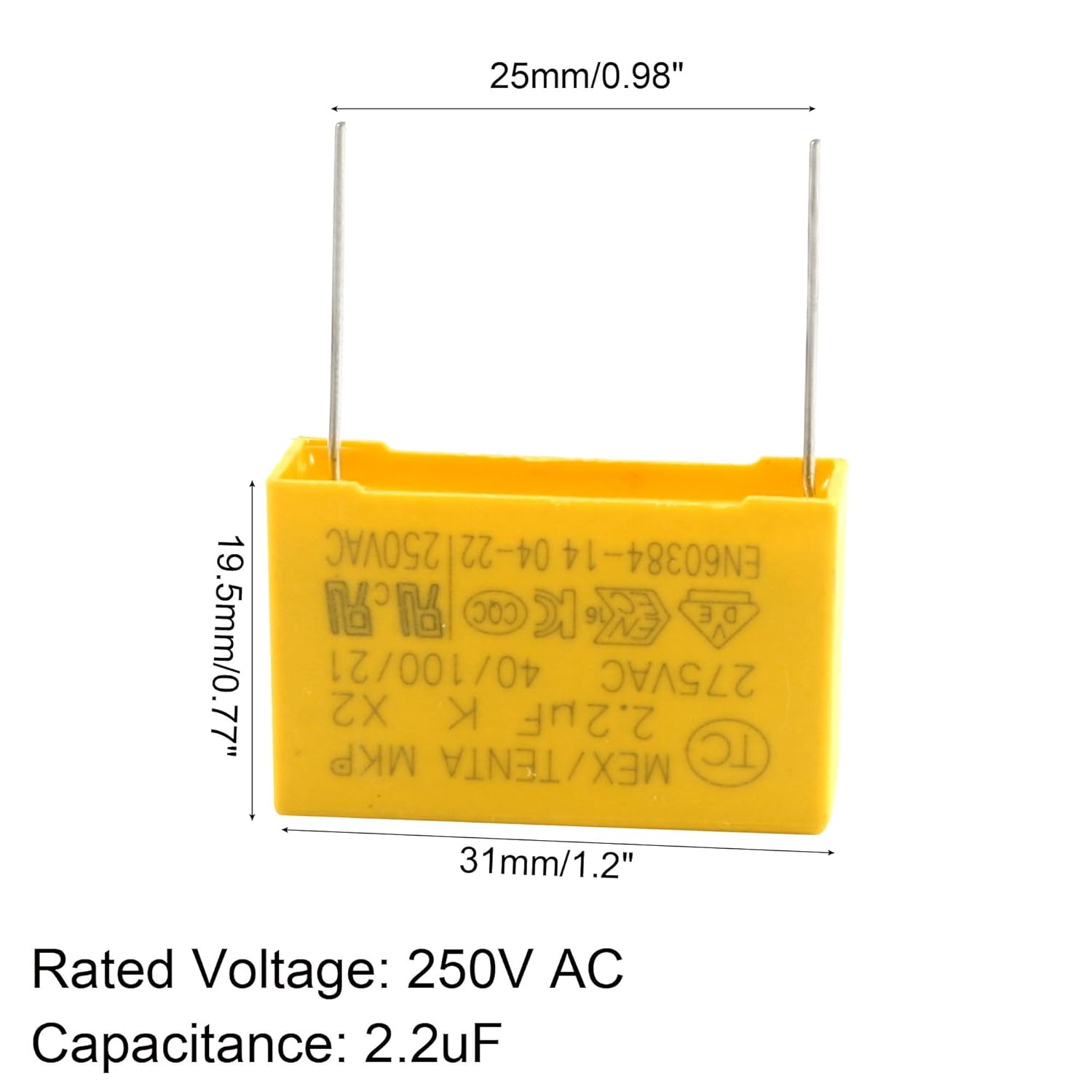

Description: * X2 Series safety capacitor features dip mounting type and compact size.* Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.* Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.* It applies to jumper the power line, EMI filters, switching power supply and other power supply with security requirements.* Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance. Specification: * Product Name: Safety Capacitor* Model: 275v225P22* Color: Yellow* Material: Polypropylene, Metal* Shape: Rectangle* Withstand Voltage: 275V AC* Rated Voltage: 250V AC* Capacitance: 2.2uF* Tolerance: K(±10%)* Temperature Characteristic: 40/100/21* Lead Type: Radial Direction* Lead Shape: S* Lead Size (Approx.): 0.8 x 19mm / 0.03 x 0.75inch* Pin Pitch (Approx.): 25mm / 0.98 inch* Body Size (Approx.): 31 x 19.5 x 10mm / 1.2 x 0.77 x 0.39inch (L*W*T) Package Content: * 20 x Safety Capacitors

• Capacitance: 2.2uF; Tolerance: K(±10%); Withstand Voltage: 275V AC.
• Lead Size (Approx.): 0.8 x 19mm / 0.03 x 0.75inch; Pin Pitch (Approx.): 25mm / 0.98 inch.
• Performance: Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.
• Durable: Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.
• Application: Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance.
