WENGART DC MCCB 200A 500V, Non-Polarized Solar DC Breaker Disconnect Switch, 2-Pole Thermal-Magnetic Protector for PV System, Battery Storage & RV DIY, 10kA Breaking Capacity, UL 94V-0 Shell

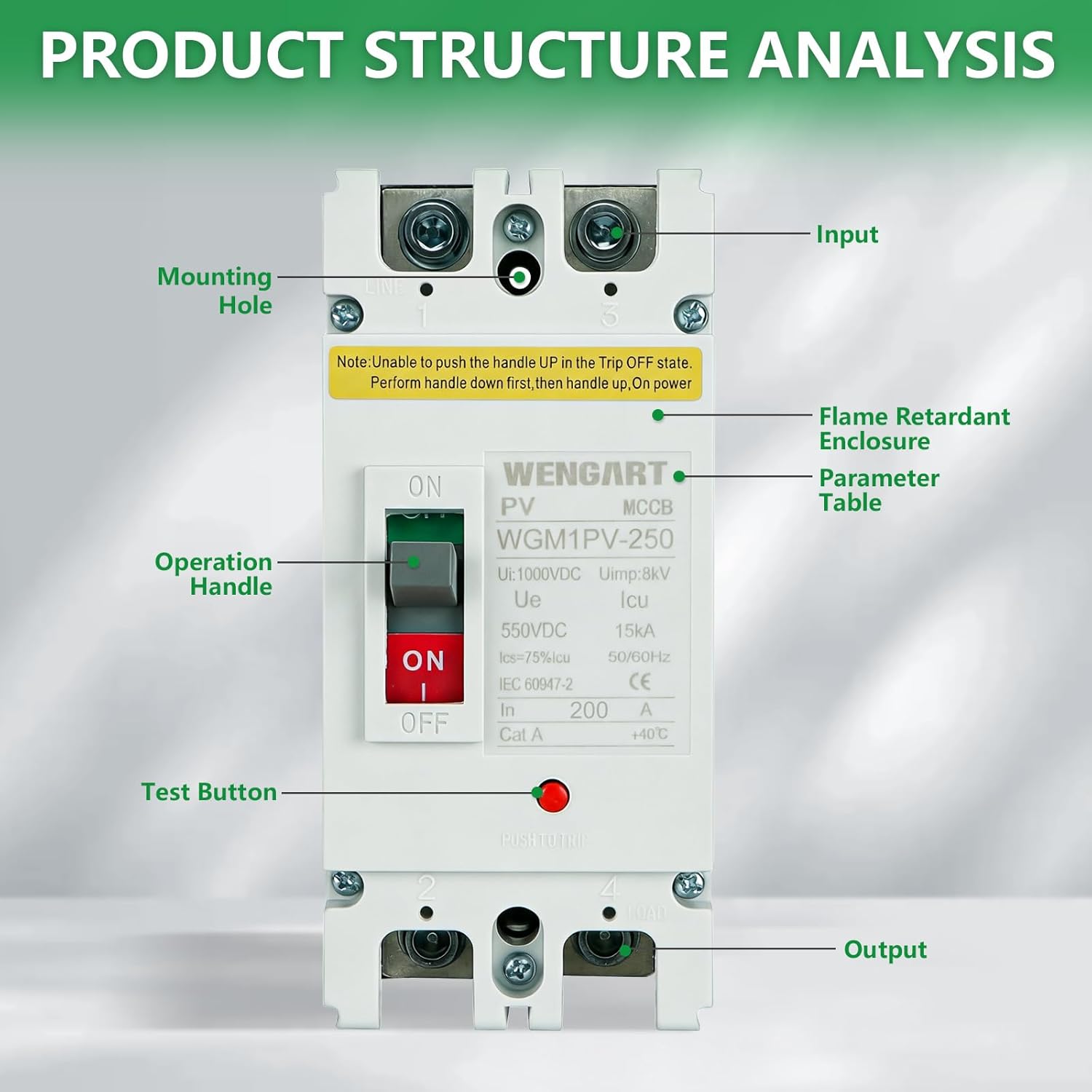

WGM1PV-250 SERIES DC MOLDED CASE CIRCUIT BREAKER (MCCB) The WGM1PV-250 is a technical component designed for circuit isolation and overcurrent protection in high-capacity DC systems. Unlike standard polarized units, this MCCB features a non-polarized design, supporting bi-directional wiring flexibility for solar arrays and battery energy storage systems (ESS). TECHNICAL SPECIFICATION MATRIX: - Model: WGM1PV-250 (Molded Case Type) - Rated Current (In): 200 Amp - Rated Voltage (Ue): 500V DC - Breaking Capacity (Icu): 10kA - Wiring Configuration: Non-Polarized (Bi-Directional) - Tripping Mechanism: Thermal-Magnetic - Housing Material: UL 94V-0 Flame Retardant - Mounting: Surface Bolt-on Mounting (Not DIN-Rail) FIELD INSTALLATION FAQ: ADDRESSING COMMON TECHNICAL QUERIES Q: Is this unit polarity-sensitive? A: No. The WGM1PV-250 series is non-polarized. It allows the installer to define the positive and negative terminals at the top entry based on the enclosure layout, provided the bottom terminals are wired to correspond. This feature supports easier cable management in DIY solar projects. Q: Does it fit a standard 35mm DIN-rail? A: No. As an industrial-grade MCCB, this unit requires a flat surface for bolt-on mounting or a compatible MCCB load center. Its physical dimensions are designed to manage 200A continuous thermal loads, which exceed the capacity of standard mini-rail breakers. Q: What is the function of the internal Arc Chutes? A: DC current creates significant arcing when disconnected. The integrated arc chutes partition and dissipate these arcs, supporting the mechanical stability of the contact system and maintaining the structural integrity of the flame-retardant shell. Q: Can I use this for a 48V Lithium Battery Bank? A: Yes. While rated up to 500VDC, it is a functional choice for 12V, 24V, and 48V systems. The 10kA breaking capacity is specifically rated to handle the high potential short-circuit currents associated with large battery banks. STANDARD APPLICATION CONTEXTS: - Off-Grid Solar Distribution: Main disconnect between solar inverters and battery storage. - PV Combiner Systems: Managing high-amperage string currents in photovoltaic arrays. - RV and Marine Power: High-draw DC distribution for mobile off-grid environments. - EV Charging Projects: Functional DC disconnect for high-voltage DIY power stations.

• Bi-Directional Non-Polarized Wiring: Designed for maximum installation flexibility. The WGM1PV-250 allows you to freely define positive and negative terminals on the top entry, provided the bottom corresponds. This non-polarized logic simplifies wiring in complex DIY battery banks and reduces error risk.
• Heavy-Duty 200A Load Center: Engineered for high-capacity power systems, featuring a 200 Amp rated current and a 10kA short-circuit breaking capacity ($I_{cu}$). It serves as a robust functional disconnect for residential photovoltaic (PV) arrays and battery energy storage systems (ESS).
• Integrated Arc Suppression: Equipped with internal arc chutes to manage DC arcs during high-load switching. This technical feature partitions and dissipates arcs rapidly, supporting the mechanical stability of the contact system and preventing thermal damage to the internal housing.
• Thermal-Magnetic Tripping: Utilizes a dual-action mechanism that responds to both sustained overloads and instantaneous short circuits. This provides a functional barrier for 48V, 96V, or high-voltage DC inverters, battery chargers, and solar power stations.
• Industrial-Grade Build: Encased in a high-impact, UL 94V-0 flame-retardant housing. This 500VDC MCCB maintains its physical integrity in demanding environments, making it a reliable component for bolt-on mounting in load centers or off-grid enclosures.
